Description

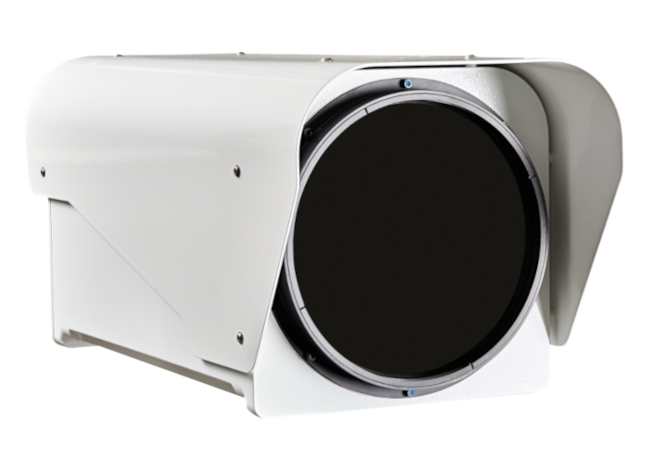

SUMO-U300 and SUMO-U300HD offer a cost-effective solution for night surveillance applications. They are particularly suitable for mid-range electro-optical surveillance systems.

SUMO-U300 and SUMO-U300HD are highly reliable and sensitive uncooled thermal imaging cameras with 7.5x optical zoom and three levels of digital zoom: 2x, 4x and 8x. The sensitive optical and electronic parts are placed in a sealed ruggedized environmental housing for extra protection. The cameras are remote-controlled via a serial line.

Features:

- AGC (automatic gain control)
- AGC parameters adjustments (level, gain)
- DRE (dynamic range enhacement)
- autofocus
- reticle and saving reticle position
- progressive scan
- 8x digital zoom
- pseudocolor palettes
- NUC - internal
- digital video enhancement

Additional features of the HD version:
- image stabilization
- sharpening
- OSD + user text
- noise reduction

Specifications

  SUMO-U300 SUMO-U300HD
IR Camera
Sensor 640 x 512 1280 x 720
Spectral Band LWIR LWIR
Thermal Sensitivity <40 mK at f/1,0 <40 mK at f/1,0
Pixel Pitch 17 µm 12 µm
Lens 40 - 300 mm 40 - 300 mm
Optical Zoom 7.5x 7.5x
Field of View WIDE: 15°29' x 12°25'
TELE: 2°05' x 1°40'
WIDE: 21°44' x 12°20'
TELE: 2°56' x 1°39'
F# f/1.5 f/1.5
Video Output PAL HD-SDI
Other
Control Interface RS-232 RS-232
Power Supply 24 V DC (18 - 32 V) 24 V DC (18 - 32 V)
Power Consumption <45 W (normal) / <90 W (peak) <45 W (normal) / <90 W (peak)
Operating Temperature -32 °C to +60 °C -32 °C to +60 °C
Storage Temperature -40 °C to +60 °C -40 °C to +60 °C
Environmental Protection IP 66 IP 66
Weight 15.5 kg 15.5 kg
Dimensions (W x D x H) 267 x 435 x 264 mm 267 x 435 x 264 mm
Standard EN 61000, MIL-STD-810, MIL-STD-461 EN 61000, MIL-STD-810, MIL-STD-461

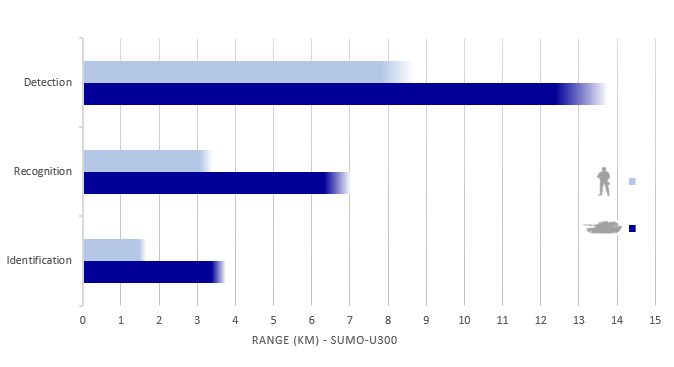

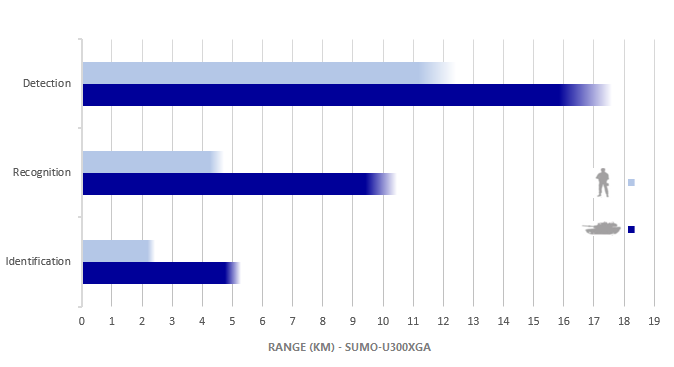

Range Performance
