Day Night Cameras

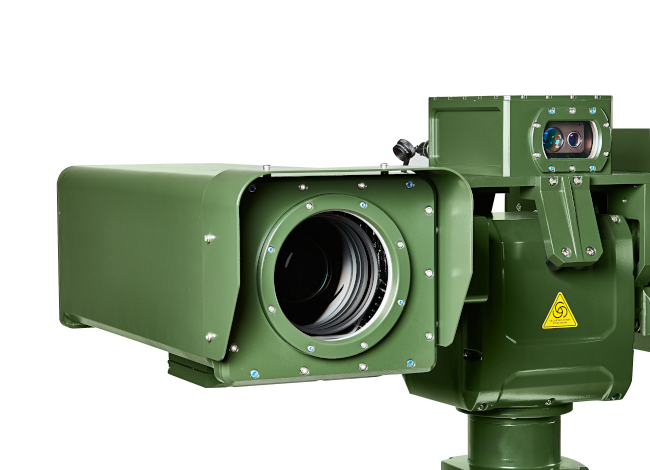

SUMO-HDV60 Day Night Camera

SUMO-HDV60 is a high resolution color camera intended for long-range surveillance applications. A high resolution sensor in combination with 60x zoom lens delivers a high quality video. Magnification of the system can be increased twice by an inbuilt extender, in total 120x. The lens with a large entrance aperture ensures sufficient light conditions for a high quality video and high resolution.

The camera with its accessories is placed in a sealed ruggedized environmental housing to protect optical and electronical parts. The camera body is equipped with an internal heating system. The housing includes a protective sun roof. The camera is remote-controlled via a serial line.

Features:

- sharpening
- OSD + user text
- autofocus
- noise reduction
- automatic lens heating
- reticle and saving reticle position
- backlight compensation
- progressive scan
- white balance
- Auto ICR
- AutoIris
- AGC (automatic gain control)
- digital zoom 8x
- wide dynamic range / HDR

Optional features:

- image stabilization
- de-fog
- extender
- wiper

Specifications

SUMO-HDV60 - DAY-NIGHT CAMERA
Camera Module
Sensor 1/3” CMOS
Resolution 1920 x 1080
Sensitivity Color Mode: 0.03 lx (f/1.2 AGC:MAX.)
B/W Mode: 0.003 lx (f/1.2 AGC:MAX.)
S/N Ratio 50 db
Video Output HD-SDI
Lens
Focal Lenght 16.7 - 1000 mm *
33.4 - 2000 mm **
Zoom 60x optical, extender 2x **
FOV (WIDE: 17°18´ x 9°54´ / TELE: 0°19´ x 0°10´) *
with extender 2x:
(WIDE: 8°39´ x 4°57´ / TELE: 0°9´ x 0°5´) **
Others
Control Interface RS-232
Power Supply 24 V DC (18 - 32 V)
Power Consumption <20 W (typical, without heaters)
<100 W (with all heaters)
Operating Temperature -32 °C to +55 °C
Storage Temperature -40 °C to +60 °C
Environmental Protection IP 66
Weight 16 kg
Dimensions (W x D x H) 239 x 700 x 200 mm
Standard EN 61000, MIL-STD-810, MIL-STD-461



* Camera allows setting of hardware limits
** Values valid when using the extender
Specifications are subject to change without notice. Photo is for illustration purpose only.
