Day Night Cameras

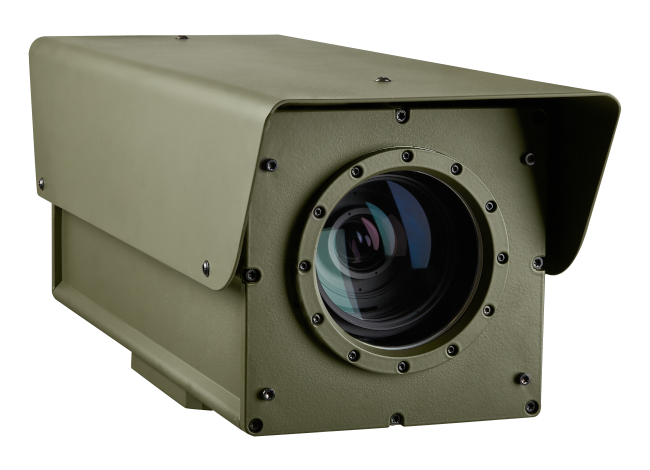

SUMO-HDV32 Day Night Camera

SUMO-HDV32 is a full HD color camera intended for middle-range surveillance applications. A high resolution sensor in combination with a 32x continuous zoom lens delivers a high quality video. The lens with a large entrance aperture ensures sufficient light conditions for a high quality video.

The camera with its accessories is placed in a sealed ruggedized environmental enclosure to protect optical and electronical parts. The camera body is equipped with an internal heating system. The housing includes a protective sun roof. The camera is remote-controlled via a serial line.

Features:

- sharpening
- OSD + user text
- autofocus
- noise reduction
- automatic lens heating
- reticle and saving reticle position
- backlight compensation
- progressive scan
- white balance
- Auto ICR
- AutoIris
- AGC (automatic gain control)
- digital zoom 8x
- wide dynamic range / HDR

Optional features:

- image stabilization
- de-fog
- wiper





Specifications

SUMO-HDV32 - DAY NIGHT CAMERA
Camera Module
Sensor 1/3” CMOS
Resolution 1920 x 1080
Minimum Illumination Color Mode: 0.03 lx (f/1.2 AGC:MAX.)
B/W Mode: 0.003 lx (f/1.2 AGC:MAX.)
S/N Ratio 50 db
Video Output HD-SDI
Lens
Focal Lenght HDV32C: 12.5 - 400 mm
HDV32D: 15.6 - 500 mm
Zoom 32x optical
FOV HDV32C
WIDE: 23°4´ x 13°8´; TELE: 0°45´ x 0°26´
HDV32D
WIDE: 18°34´ x 10°29´; TELE: 0°36´ x 0°22´
Others
Control Interface RS-232
Power Supply 24 V DC (18 - 32 V)
Power Consumption <20 W (typical, without heaters)
<100 W (with all heaters)
Operating Temperature -32 °C to +55 °C
Storage Temperature -40 °C to +60 °C
Environmental Protection IP 66
Weight 10 kg
Dimensions (W x D x H) 198 x 520 x 184 mm
Standard EN 61000, MIL-STD-810, MIL-STD-461



Specifications are subject to change without notice. Photo is for illustration purpose only.
