DEFENCE
SECURITY

Description

SUMO-C600 (analogue version) and SUMO-C600HD (HD version) are highly sensitive cooled mid-wave thermal imaging cameras designed for easy integration into a wide variety of multi-sensor applications.

The cameras consists of a cooled mid-wave infra-red (MWIR) detector with 20x optical zoom (SUMO-C600) or 10x optical zoom (SUMO-C600HD) and an autofocus function. Together with all the other main electronic components, this detector is sealed in a solid rugged housing to ensure that the devices can operate in all weather conditions.

SUMO-C600 and SUMO-C600HD offer a reliable and cost-effective solution that fully meets the requirements of MIL-STD 810 and MIL-STD 461.

Features:

- AGC (automatic gain control in linear, histogram and manual modes)
- AGC parameters adjustments (level, gain, tail rejection, gain limit, histogram plateau)
- DRE (dynamic range enhacement)
- sharpening
- OSD + user text
- autofocus
- noise reduction
- reticle and saving reticle position
- progressive scan
- 8x digital zoom
- pseudocolor palettes
- BPR (bad pixels removal)
- integration time and period adjustment
- automatic precalibrated NUC tables loading

Optional features:

- lens defrost
- image stabilization

Specifications

  SUMO-C600 SUMO-C600HD
IR Camera
Sensor 640 x 512  1280 x 720
Spectral Sensitivity 3 – 5 µm  3 – 5 µm
Thermal Sensitivity <25 mK  <25 mK
Pixel Pitch 15 µm  10 µm
Lens 30 – 600 mm 60 – 600 mm
Optical Zoom  20x continuous 10x continuous
Field of View Wide: 17°12' (H) x 13°48' (V)
Tele: 0°54' (H) x 0°43' (V)
Wide: 11°24' (H) x 6°26' (V)
Tele: 1°12' (H) x 0°41' (V)
F# f/4.0   f/4.0
Video Output PAL / NTSC / SD-SDI / Low latency stream H.264 HD-SDI / Low latency stream H.264

Others
Control Interface RS-232 RS-232
Power Supply 24 V DC (18 - 32 V) 24 V DC (18 - 32 V)
Operating Temperature -32 °C to +55 °C -32 °C to +55 °C
Storage Temperature -40 °C to +70 °C -40 °C to +70 °C
Environmental Protection IP 66 IP 66
Autofocus One shot autofocus  One shot autofocus
Weight 13 kg 13 kg
Dimensions (W x D x H) 270 x 590 x 330 mm 270 x 590 x 330 mm
Standard MIL-STD-810, MIL-STD-461 MIL-STD-810, MIL-STD-461

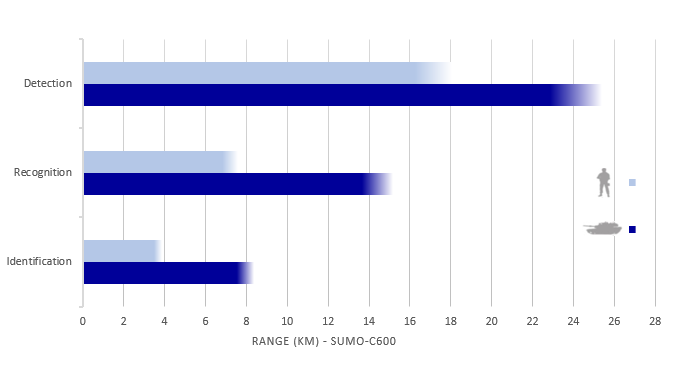

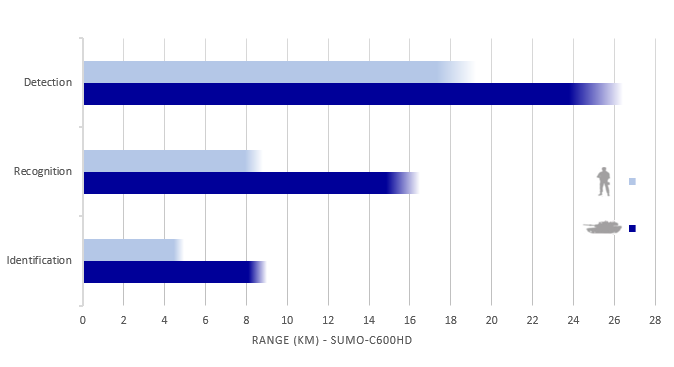

Range Performance
