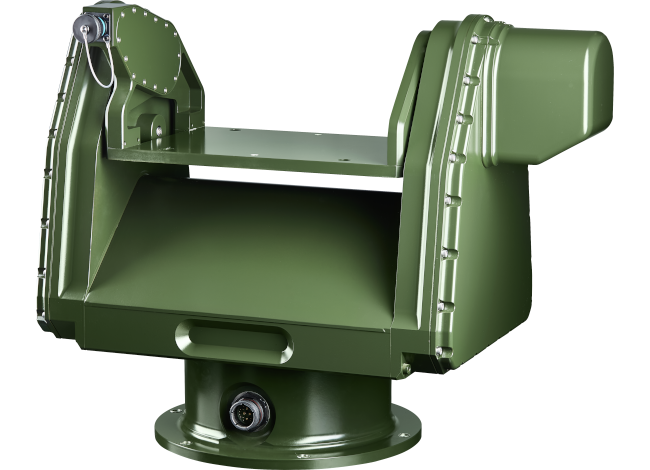

MTU-1A Pan Tilt Positioner with Gyro Stabilization

a flexible solution for multi-sensor sights

Description

The MTU-1A is a servo-controlled two-axis pan tilt. It is designed for carrying multi-sensor sights that can be equipped with day cameras, thermal imaging cameras, LRF or other sensors. The gyrostabilized version of the MTU-1A is suitable for installation on a vehicle or vessel, where it offers the advantage of better stabilization due to its lower center of gravity and the positioning of the multisensor sight in the intersection of the azimuth and elevation axis.

The MTU-1A pan tilt has a payload of up to 40 kg and offers the possibility of modification to meet customer needs. Modifications may include dimensions, payload and wiring (HD-SDI video, etc.).

Specifications

MTU-1A - PAN TILT POSITIONER WITH GYRO STABILIZATION
Motion Range
Azimuth n x 360°
Elevation ±40°
Angular Speed
Azimuth

0,005 °/s to 120 °/s

0,005 °/s to 30 °/s*

Elevation

0,005 °/s to 100 °/s

0,005 °/s to 30 °/s*

Other
Positioning Accuracy ≤±0,1 mrad
Payload 40 kg
Control Interface Ethernet TCP/IP (RS-422)
Sensor Interface Ethernet 1000BASE-T, 2x serial line
Power Supply 24 V DC (20 - 30 V)
Operating Temperature -32 °C až +70 °C
Dimensions (W x D x H) 584 x 311 x 451 mm
Weight 30 kg
Environmental Protection IP 66
*NOTE: in gyrostabilized mode
