MSM Pan Tilt Positioner

MSM-2A Pan Tilt Positioner

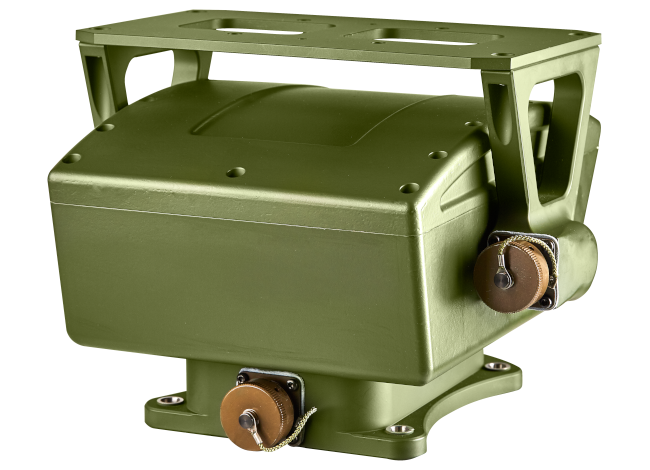

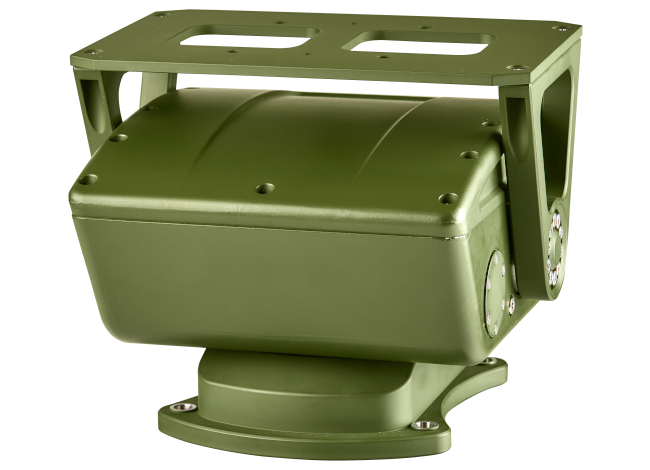

Two-axis pan tilt positioner MSM-2A is designed and engineered specially for short and middle range electro-optical surveillance systems with lightweight sensors which do not require azimuth and elevation rotation at a high angle speed.

This pan and tilt unit can carry three sensors such as a short range day camera, uncooled thermal imaging (IR) camera and laser range finder (LRF) placed on the upper platform of the unit.

MSM-2A pan tilt device complies with EN 61000, MIL-STD-810 and MIL-STD-461.

Specifications

MSM-2A - PAN TILT POSITIONER
Motion Range
Azimuth n x 360°
Elevation ±25°
Angular Speed
Azimuth 0.1 °/s to 50 °/s
(0.05 °/s to 50 °/s)*
Elevation 0.1 °/s to 25 °/s
(0.05 °/s to 25 °/s)*
Others
Positioning Accuracy ≤±1 mrad
Payload Max. 10 kg (CoG – 200 mm above the elevation axis)
Control Interface RS-422 / (Ethernet TCP/IP)**
Sensor Interface 3x serial line
Power Supply 24 V DC (18 - 28 V) / (18 - 32 V)*
Operating Temperature -32 °C to +55 °C
Dimensions (W x D x H) 232 x 232 x 178 mm
Weight  max. 7 kg
Environmental Protection IP 66



* If DC motors are used.
** Optionally
Specifications are subject to change without notice. Photo is for illustration purposes only.
