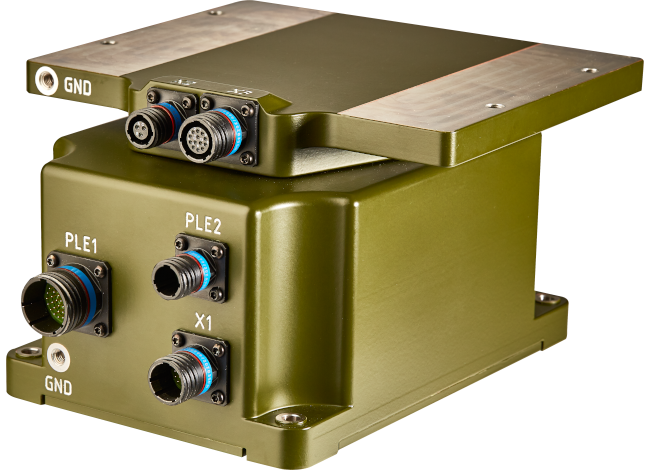

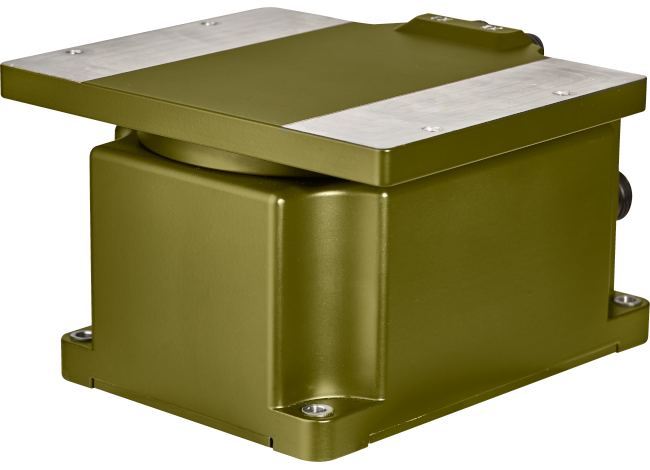

MRP-2 - Pan Device

payload up to 10 kg

MRP-2 is a pan device suitable for integration into structures such as, for example, a vehicle perimeter protection system. It was designed to carry a range of uncooled thermal imaging cameras with a fixed FOV in combination with day cameras.

MRP-2 is operated via the RS-422 interface and enables the connection of up to 13 signals through the payload connector leading to the main connector of the stator part. The device is highly ruggedized which allows operation in harsh conditions.

MRP-2‘ s payload is 10 kg.

Specifications

MRP-2 - PAN DEVICE
Pan Parameters
Azimuth Range 0 - 340°
Positioning Accuracy ≤±2.5 mrad
Azimuth Speed 0.1 °/s to 90 °/s
Control Interface RS-422
Current Consumption 0.5 A at 24 V DC (without movement)
Power Supply 24 V DC (18 - 32 V)
Payload 10 kg
Dimensions (W x D x H) 206 x 241 x 133 mm
Weight 6.5 kg
Others
Operating Temperature -32 °C to +60 °C
Storage Temperature -40 °C to +70 °C
Environmental Protection IP 67
EMC/EMI MIL-STD-461E
Electrical Transient Protection MIL-STD-1275E

Specifications are subject to change without notice. Photo is for illustrative purpose only.
