Accessories - SW, Operator Console, Cables, GNSS, DMC, LRF, Electrical Mast

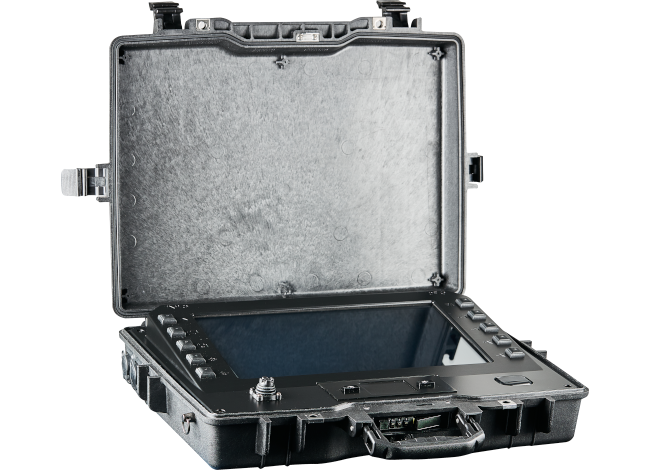

CU-6 Operator Console

CU-6 operator console is a standalone unit designed to control all EVPÚ Defence electro-optical surveillance systems. CU-6 is a Windows based operator console. Together with the installed EVPÚ Defence SW it offers a long-term, comfortable and operator friendly solution which leads to increased operator work efficiency.

Operators have the option to choose their favourite control interface: touchscreen or joystick. Rugged construction allows the console to be used under harsh weather conditions and within a wide range of temperatures.


Display 15,6" Full HD
Human Machine Interface touchscreen, joystick
Electrical and Electronic Interface
Communication Interface Ethernet
Video Input HD-SDI, SD-SDI
Power Supply 24 V DC (20 - 30 V)
Power Consumption 60 W (max)
Environmental Conditions
Operating Temperature 0 °C to +55 °C
Storage Temperature -40 °C to +70 °C
Environmental Protection IP 65
Dimensions (W × D × H) 552 x 446 x 131 mm
Weight 12.8 kg


Specifications are subject to change without notice. Photo is for illustration purpose only.
