DEFENCE
SECURITY

Description

Stationary electro-optical surveillance systems are used for monitoring and surveillance of areas of interest such as boundary lines, airports, oil refineries, power plants, coastal areas and other areas with increased demands for flexible protection against penetration by intruders during day or/and night time. MIRA series is intended for middle observation range for detection of NATO targets.

Basic configuration comprises two axes pan and tilt positioneruncooled thermal camera, day camera and laser range finder.

All electro-optical surveillance systems can be controlled through various operator consoles with different software packages.

Specifications



  MIRA-S MIRA-M MIRA-L MIRA-X MIRA-CM

Pan/Tilt Positioner


Azimuth Range n × 360° n × 360° n × 360° n × 360° Customised solution - the MIRA electro-optical system can be adapted to individual customer needs.
Elevation Range ±90° ±90° ±90° ±35°
Azimuth Speed max. 50 °/s max. 50 °/s  max. 50 °/s  max. 70 °/s
Elevation Speed max. 50 °/s max. 50 °/s  max. 50 °/s  max. 30 °/s
Positioning Accuracy ≤±1.5 mrad ≤±1.5 mrad ≤±1.5 mrad ≤±0.5 mrad
Operating Temperature -32 °C to +55 °C -32 °C to +55 °C -32 °C to +55 °C -32 °C to +55 °C
Storage Temperature -40 °C to +70 °C -40 °C to +70 °C -40 °C to +70 °C -40 °C to +70 °C
Environmental Protection IP 66 IP 66 IP 66 IP 66

Laser Rangefinder


Measuring Distance 6 000 m 6 000 m 10 000 m 20 000 m

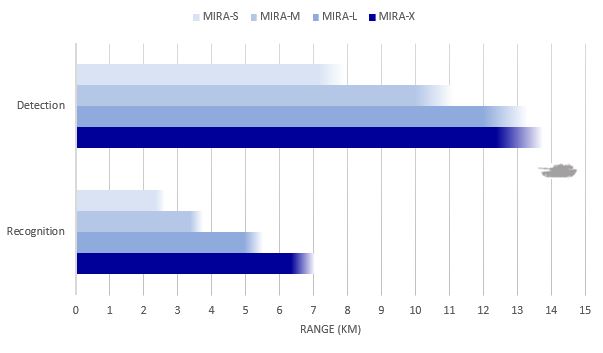

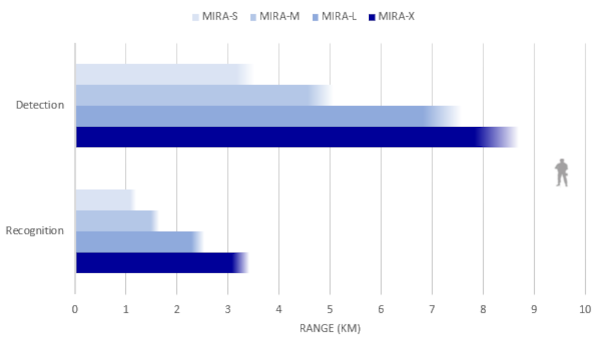

System Range Performance (HD)
