Electro-Optical Systems (EOS)

SIRIUS up to 25 km

These stationary electro-optical surveillance systems are used for monitoring and surveillance of areas of interest such as boundary lines, airports, oil refineries, power plants, coastal areas and other areas with increased demands for flexible protection against penetration by intruders during day or/and night time. SIRIUS series is intended for a long observation range up to 25* km for detection of NATO targets.

Basic configuration comprises two axes pan and tilt positioner and sensor containers. These containers usually incorporate long range sensors like cooled thermal camera, day camera, laser range finder, GPS and digital magnetic compass. The system can be equipped with a combination of different sensors like uncooled thermal camera, SWIR camera, search light and many others.

All electro-optical systems can be controlled via various types of control consoles with different software package RCM.


Pan/Tilt Positioner

Azimuth Range n × 360° n × 360° n × 360° n × 360°
Elevation Range ±35° ±35° ±40°  ±40°
Azimuth Speed max. 70 °/s  max. 70 °/s  max. 120 °/s  max. 120 °/s
Elevation Speed max. 30 °/s  max. 30 °/s  max. 100 °/s  max. 100 °/s
Positioning Accuracy ≤±0.5 mrad  ≤±0.5 mrad  ≤±0.2 mrad  ≤±0.2 mrad
Operating Temperature -32 °C to +55 °C -32 °C to +55 °C -32 °C to +55 °C -32 °C to +55 °C
Storage Temperature -40 °C to +70 °C -40 °C to +70 °C -40 °C to +70 °C -40 °C to +70 °C
Environmental Protection IP 66 IP 66 IP 66 IP 66
Laser Rangefinder
Measuring Distance 32 000 m 32 000 m 32 000 m 32 000 m

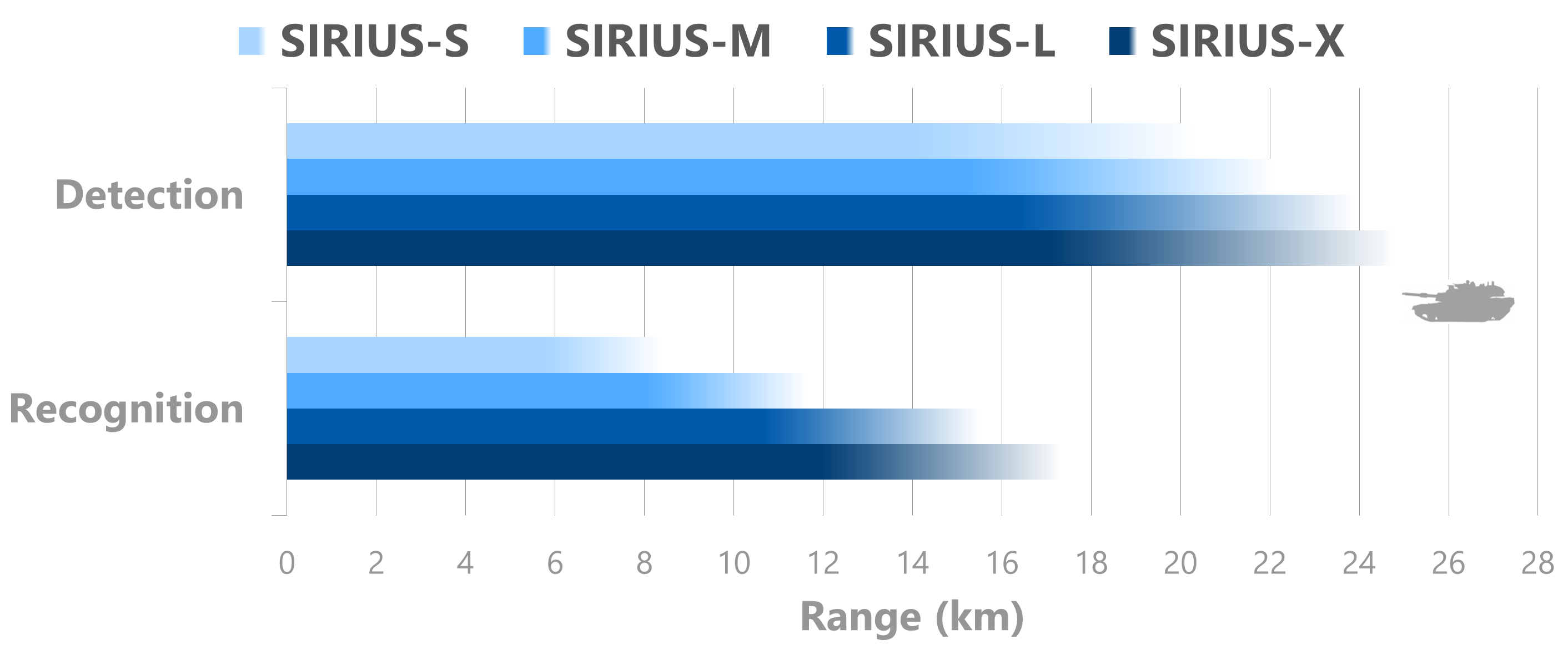

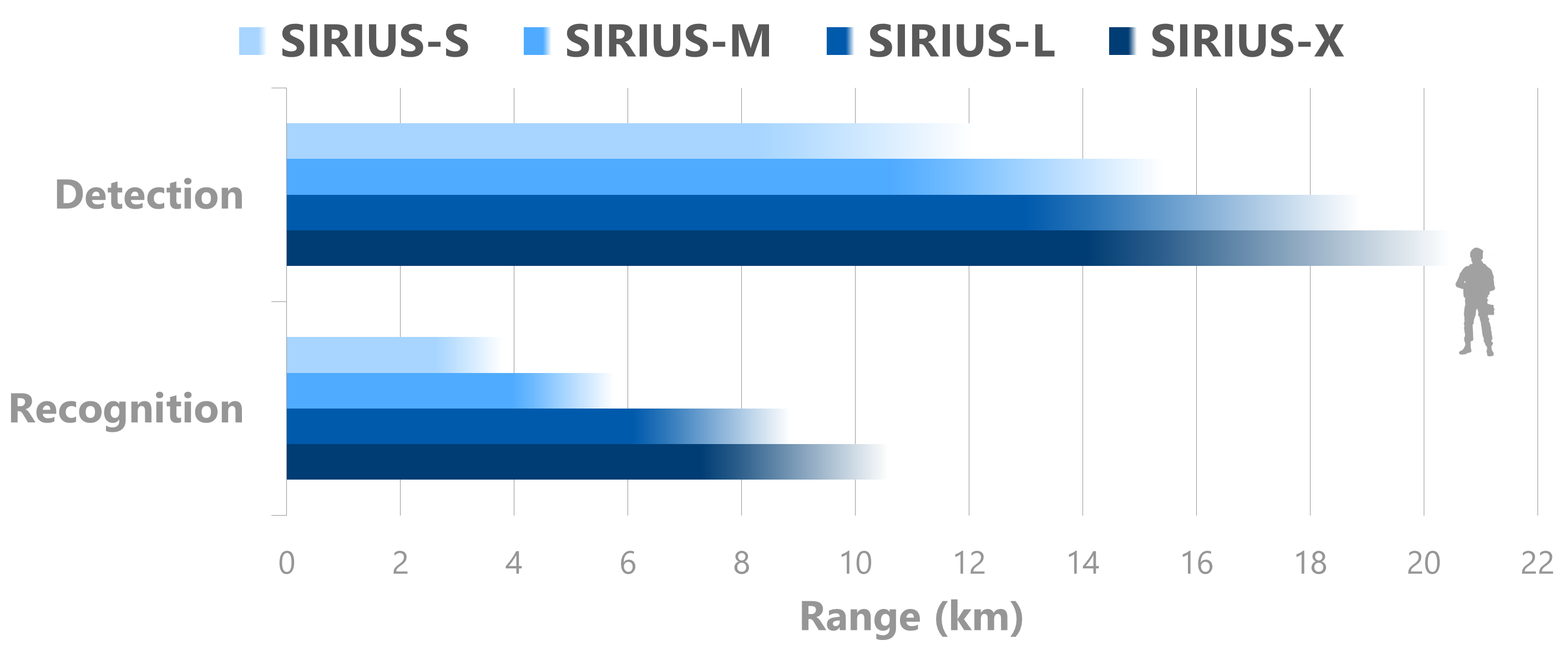

System Range Performance


* System range performance depends on actual weather conditions.
Specifications are subject to change without notice. Photo is for illustration purpose only.
