MIRA up to 14 km
Stationary electro-optical surveillance systems are used for monitoring and surveillance of areas of interest such as boundary lines, airports, oil refineries, power plants, coastal areas and other areas with increased demands for flexible protection against penetration by intruders during day or/and night time. MIRA series is intended for middle observation range up to 14* km for detection of NATO targets.
|Azimuth Range||n × 360°||n × 360°||n × 360°||n × 360°|
|Azimuth Speed||max. 50 °/s||max. 50 °/s||max. 50 °/s||max. 70 °/s|
|Elevation Speed||max. 50 °/s||max. 50 °/s||max. 50 °/s||max. 30 °/s|
|Positioning Accuracy||≤±1.5 mrad||≤±1.5 mrad||≤±1.5 mrad||≤±0.5 mrad|
|Operating Temperature||-32 °C to +55 °C||-32 °C to +55 °C||-32 °C to +55 °C||-32 °C to +55 °C|
|Storage Temperature||-40 °C to +70 °C||-40 °C to +70 °C||-40 °C to +70 °C||-40 °C to +70 °C|
|Environmental Protection||IP 66||IP 66||IP 66||IP 66|
|Measuring Distance||6 000 m||6 000 m||10 000 m||20 000 m|

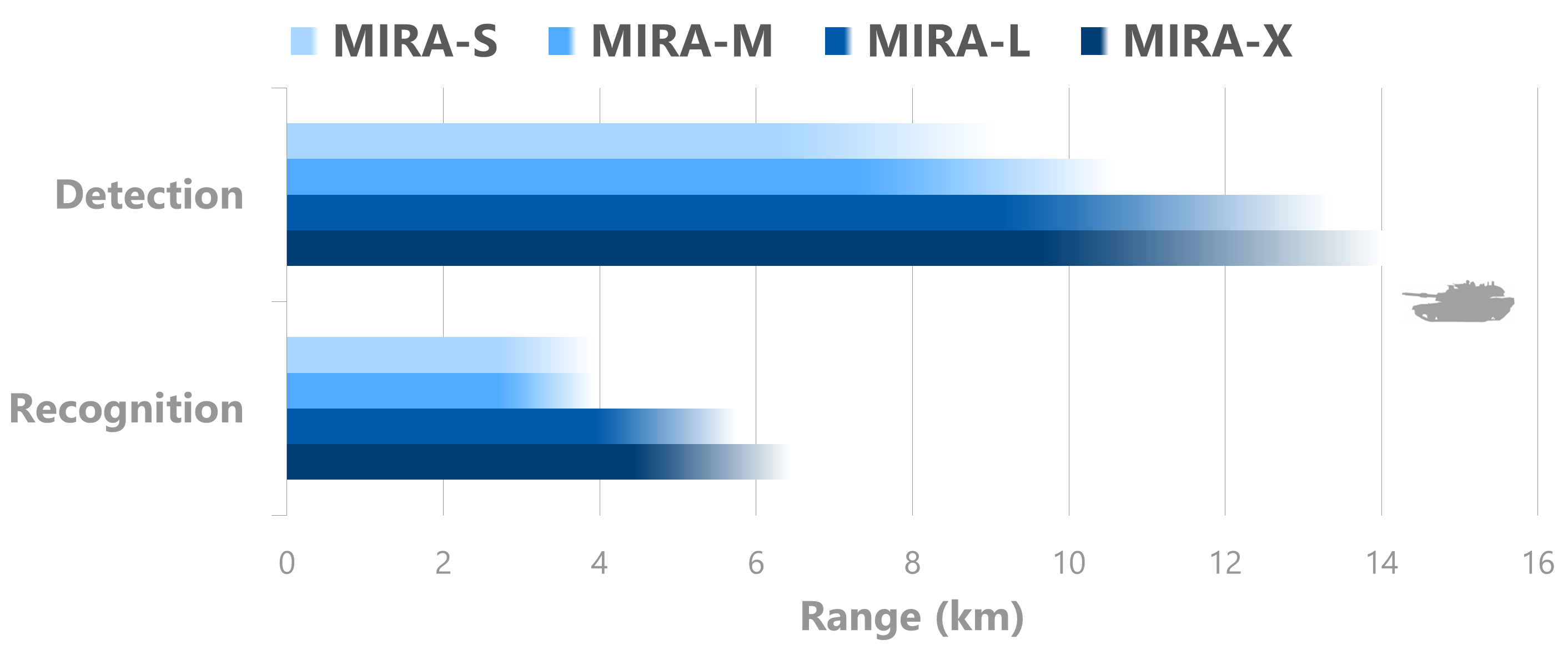

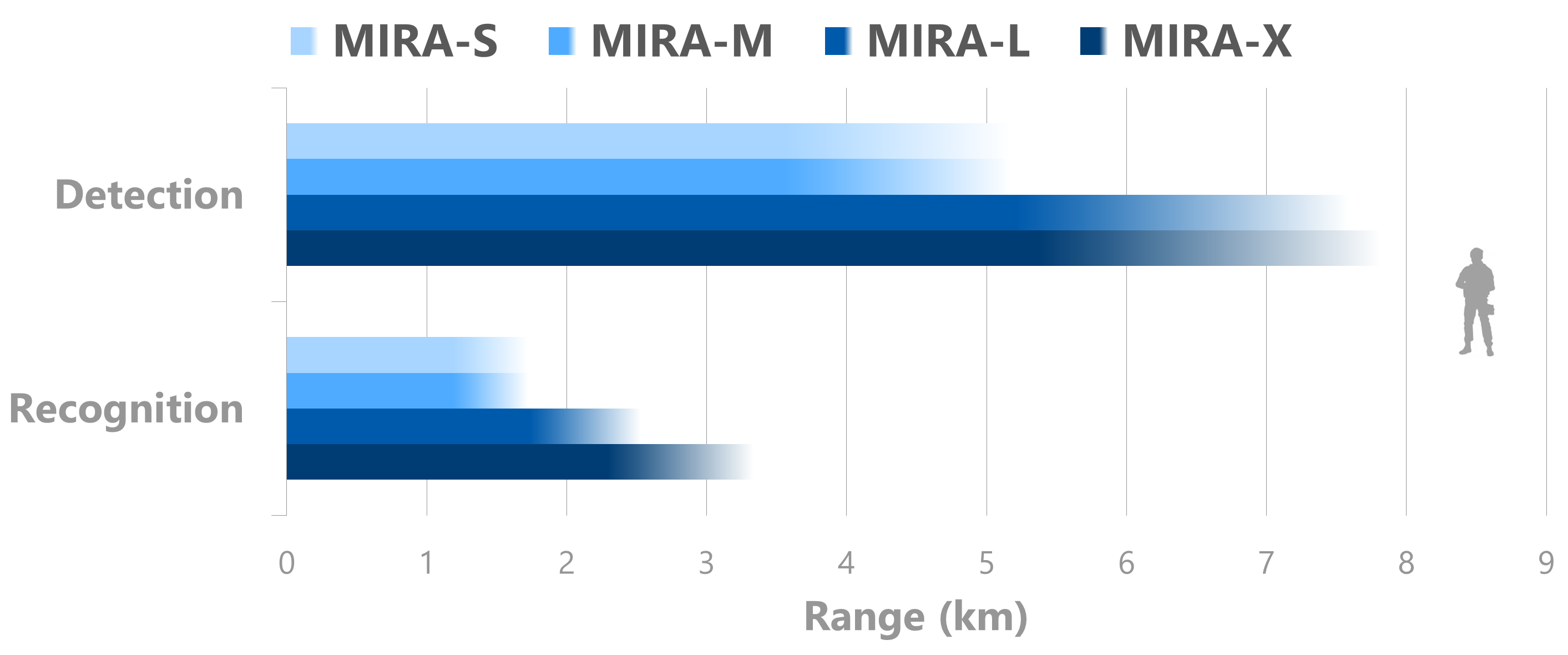

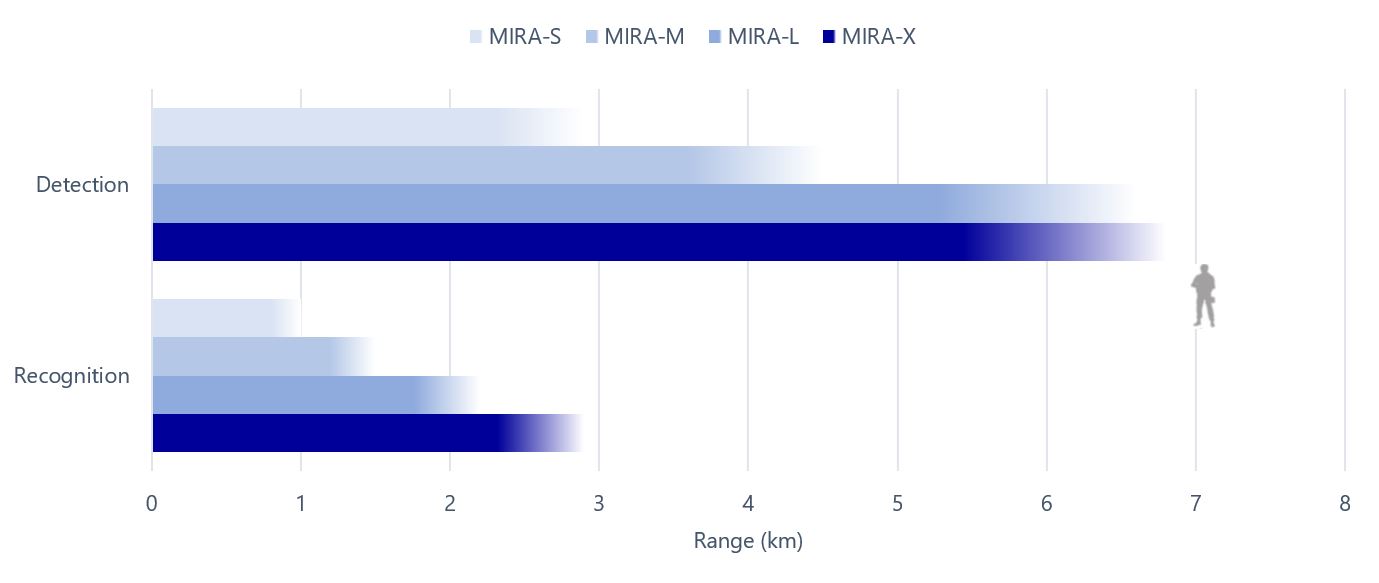

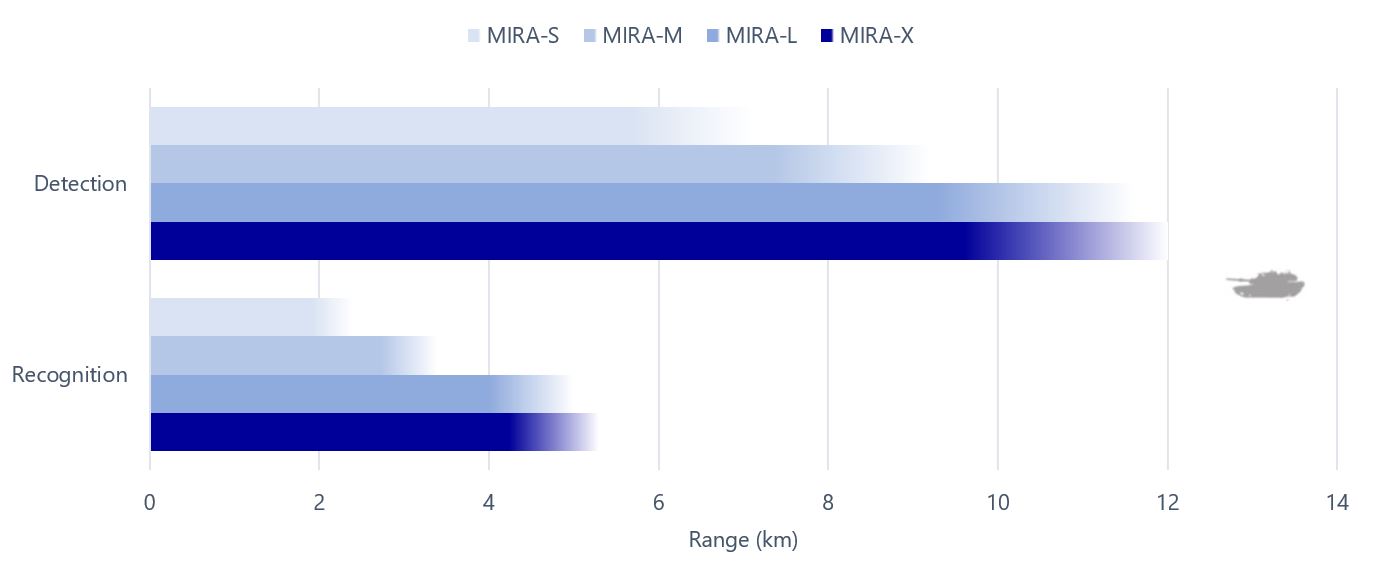

System Range Performance
* System range performance depends on actual weather conditions.
Specifications are subject to change without notice. Photo is for illustration purpose only.
